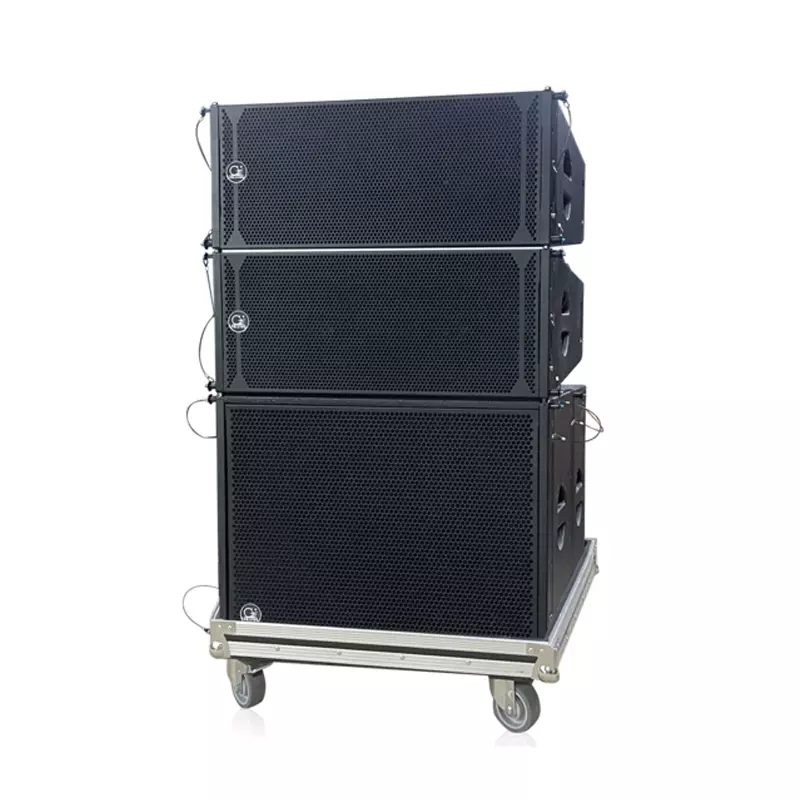

2*TQ-2210+1*TQ-180A
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Active Linear Array
Brand：TR.LIGE
Model：2*TQ-2210+1*TQ-180A
Products
Latest News
Product Details
Engineering Information：
MODEL:TQ-2210
| Drivers: |
HF:1×1.4"Voice-coil:3" LF:2×10"Voice-coil:2.5" |
| Frequency (-10dB): | 68-18000Hz |
| Dispersion(-6dB): | horizontal:80°-100°/Splay angle setting:0°-12°(1°increment) |
| Sensitivity（1m/1W): | HF:103dB/LF:98dB |
| Maximum SPL： | 128.7dB continuous/134.7dB Peak |
| Nominal Impedance： | HF:8 Ohms/LF:8 Ohms |
| Rated Power： | HF:140W RMS/280W Peak LF:1180W RMS /2360WPeak |
| Recommended AMP： | HF:200W/8 Ohms LF:1300W/8 Ohms |
| Crossover Frequency： | 1200Hz |
| Connectors： | 2x Speakon NL4MP |
| Material： | High-quality double-layer birch plywood box |
| Mesh surface： | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish： | Environmental protection water-based paint |
| Handing Position： | Dedicated hoisting system |
| Dimensions(H×WxD)： | 290mm×700mm×516mm |
| Net Weight(Kg)： | 29.5 |
MODEL:TQ-180A
| Drivers | LF:1×18"Voice-coil:4" |
| Frequency(-10dB)： | 35-150Hz |
| Dispersion(-6dB)： | ------- |
| Sensitivity(1m/1w)： | 101.7dB |
| Maximum SPL ： | 133.7dB Continuous/139.7dB Peak |
| Standard Impedance： | 8 Ohms |
| Rated Power ： | 1600W RMS/3200W Peak |
| Amplifier type: | Switched power amplifier, Class D circuit, with DSP/96K processing |
| Material： | High-quality double-layer birch plywood box |
| Mesh surface： | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish： | Environmental protection water-based paint |
| Connectors： | 2x speakon XLR |
| Dimexnsions(H×W×D) ： | 516mm×(700)mm×595mm |
| Net Weight(Kg)： | 41.3 |
