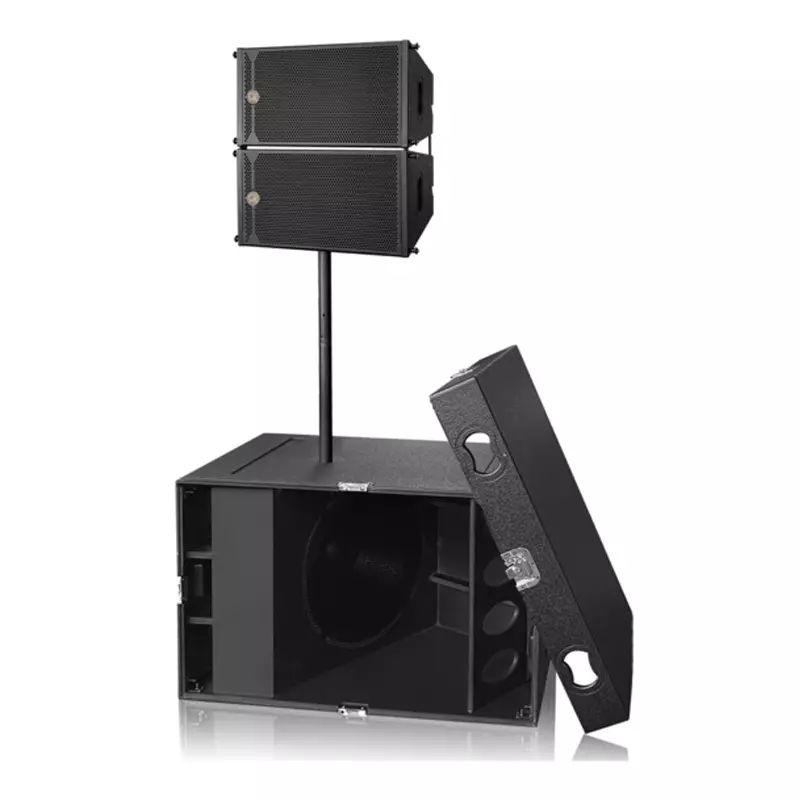

LA Active Speaker（one set）
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Active Linear Array
Model：2*LA-110A+1*LA-118A
Products
Latest News
Product Details
Engineering Information：
MODEL:LA-110A
| Drivers |
HF:2×1"Voice-coil:1.75" LF:1×10"Voice-coil:2.5" |
|
Frequency (-10dB) |
70-18000Hz |
| Dispersion(-6dB) |
horizontal: 80°Splay angle setting:0°-12° |
| Sensitivity（1m/1W) |
HF:105dB/LF:97dB |
| maximum SPL |
124.6dB Continuous /130.6dB Peak |
| Nominal Impedance |
HF:16 Ohms/LF:8 Ohms |
| Rated Power |
HF: 140W RMS/280W Peak ; LF: 580W RMS /1160W Peak |
| Crossover Frequency | 1800 Hz |
| Connectors |
2x Speakon NL4MP |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish | Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 298mm×530mm×420mm |
| Net Weight(Kg) | 19.4 |
MODEL:LA-118A
| Drivers | LF:1×18"Voice-coil:4" |
| Frequency(-10dB) | 35-180Hz |
| Dispersion(-6dB) |
-------- |
| Sensitivity（1m/1W) |
98.7dB/（1W/1M） |
| maximum SPL |
130.7dB Continuous / 136.7dB Peak |
| Nominal Impedance |
8 Ohms |
| Rated Power |
1600W RMS / 3200W Peak |
| Power amp |
300W/8 Ohms+1200W/4 Ohms+1000W/8 Ohms |
| Amplifier type |
Switched power amplifier, Class D circuit, with DSP/96K processing |
| Connectors |
2x Speakon XLR |
| Material | High-quality double-layer birch plywood box |
| Finish | Environmental protection water-based paint |
| Dimensions(H×WxD) | 600mm×950mm×650mm |
| Net Weight(Kg) | 56 |
