TQ-2230
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Line array speaker
Brand：TR.LIGE
Model：TQ-200
Products
Latest News
Product Details
Applications：
Applicable places: performances, performing arts bars, party bars, music restaurants, auditoriums.
Engineering Information：
MODEL:TQ-2230
| Drivers |
HF:2×1.4"Voice-coil:3" MF:4×6.5"Voice-coil:1.46" LF:2×12"Voice-coil:3" |
| Frequency (-10dB) | 40-18000Hz |
| Dispersion(-6dB) | H 120° x V8° |
| Sensitivity（1m/1W) | HF:110dB/MF:107dB/LF:103dB |
| Maximum SPL | 135dB continuous/141dB Peak |
| Standard impedance | HF:8 Ohms/MF:8 Ohms/LF:2x8 Ohms |
| Rated Power |
HF:2x160W RMS/640W Peak MF:4x160W RMS /1280W Peak LF:2x800WRMS /3200WPeak |
| Crossover Frequency: | 200Hz-2000Hz |
| Connectors |
2×Speakon NL8MP |
| Material |
High-quality double-layer birch plywood box |
| Mesh surface |
High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish |
Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 368mm×970mm×557mm |
| Net Weight(Kg) | 54.6 |

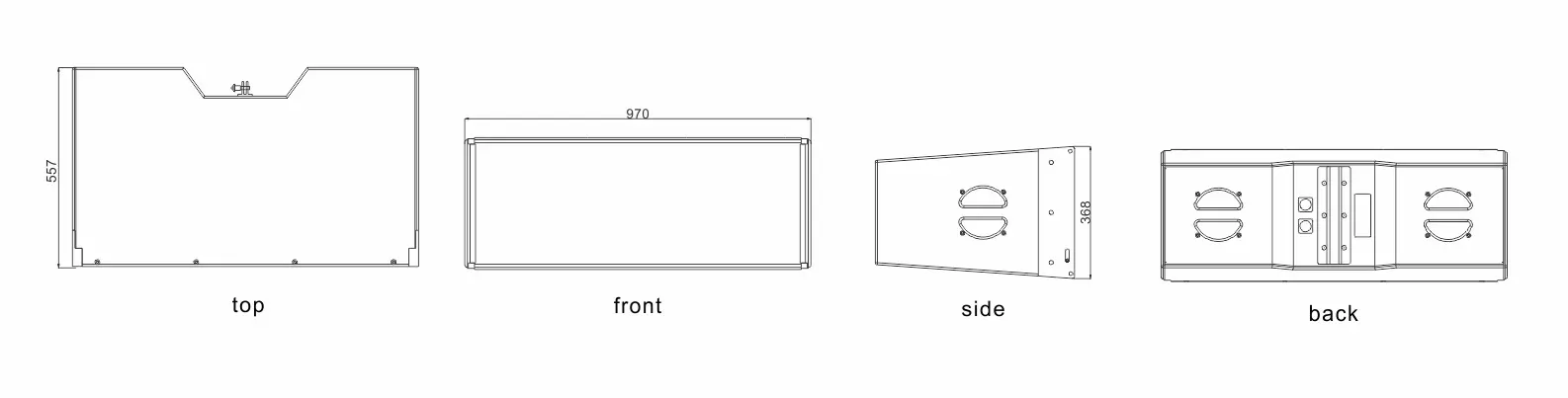

Constrction DraWing:
 |
