K1

MOQ: 1 Pieces

Delivery time: 15 Day

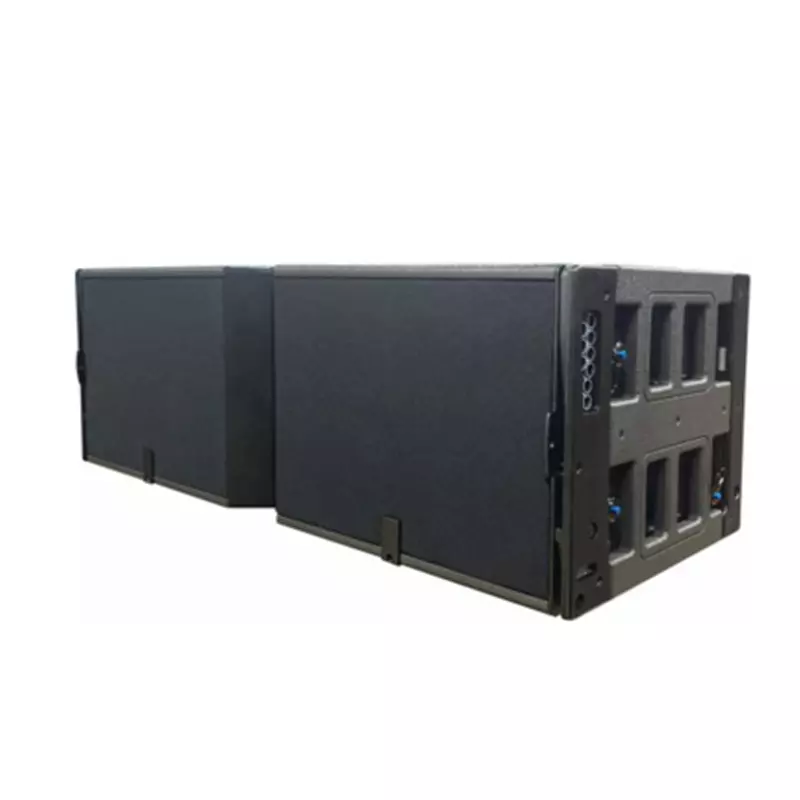

Type：OEM Series Brand：TR.LIGE Model：K1

Products

PA Line array product

LA Series

TZ Series

TQ Series

OEM Series

Active Product

LA Active Series

TQ Active Series

TC Active Series

PA System

TC Series

Matrix column

KTV Entertainment

Stage monitoring

Power Amplifier

D Series

EA Series

EP Series

TD Series

GX Series

MA Series

Peripheral Products

Peripherals

Sequencer Series

Microphone Series

Latest News

Lu 'an MUSE CLUB: A party journey with unique concepts and top-notch configurations

Step into the behind-the-scenes story of the high-end AUDIO quality boxes at the music feast of TR.LIGE Audio and the No. 1 Encounter Club in Lu 'an, Anhui Province

The musical journey of TR.LIGE AUDIO and Anhui Tianzhangzhai Hot Spring Resort marks the beginning of a feast for the eyes and ears

TR.LIGE AUDIO has joined hands with BULLET CLUB in Lu 'an, Anhui Province to create a new entertainment landmark, dancing youth and igniting passion

TR.LIGE AUDIO, in collaboration with Lanzhou Atletis Party KTV, leads the trend and creates a brand-new entertainment experience

Products

LA-110

View Details

LA-180B

View Details

TQ-180

View Details

TQ-2230

View Details

TZ-228 Dual 8"line array

View Details

Product Details

Applications：

Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.

Engineering Information：

MODEL: K1

Frequency Response(-10 dB):	35 Hz-20 kHz
Sound pressure level Max.SPL1:	140 dB
Covering Angle Nominal Dispersion(-6dB):	90°symmetric +5°
Function of curvature of source line:	(inter-elements Angle :1, 1.5, 2, 0, 0.5, 2.5°),3, 4, or 5°
Unit configuration :	(All imported parts technology customized high quality neodymium magnetic units):HF:3 x 3",;MF:4 x 6.5";LF: 2 x 15"(neo)
Bearing power RMS:	HF:3x160W/RMS/2x320W Peak;MF:4x160W RMS /4x320W Peak;LF:2x1000W RMS /2x2000WPeak
Input Connector :	2x8-point PA-COM
Box board:	15mm high-quality birch plywood
Surface paint:	multi-layer spray polyurea waterproof paint
Net weight(kg):	100.1
