LA-110
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Line array speaker
Brand：TR.LIGE
Model：LA-110
Products
Latest News
Product Details
Engineering Information：
MODEL:LA-110
| Drivers |
HF:2×1"Voice-coil:1.75" LF:1×10"Voice-coil:2.5" |
| Frequency (-10dB) |
70-18000Hz |
| Dispersion(-6dB) |
horizontal: 80°Splay angle setting:0°-12° |
| Sensitivity（1m/1W) |
HF:105dB/LF:97dB |
| Maximum SPL |
124.6dB Continuous/130.6dB Peak |
| Nominal Impedance |
HF:16 Ohms/LF:8 Ohms |
| Rated Power |
HF:140W RMS/280W Peak;LF:580W RMS /1160W Peak |
| Crossover Frequency |
1800 Hz |
| Connectors |
2x Speakon NL4MP |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish | Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 298mm×530mm×420mm |
| Net Weight(Kg) | 19.4 |

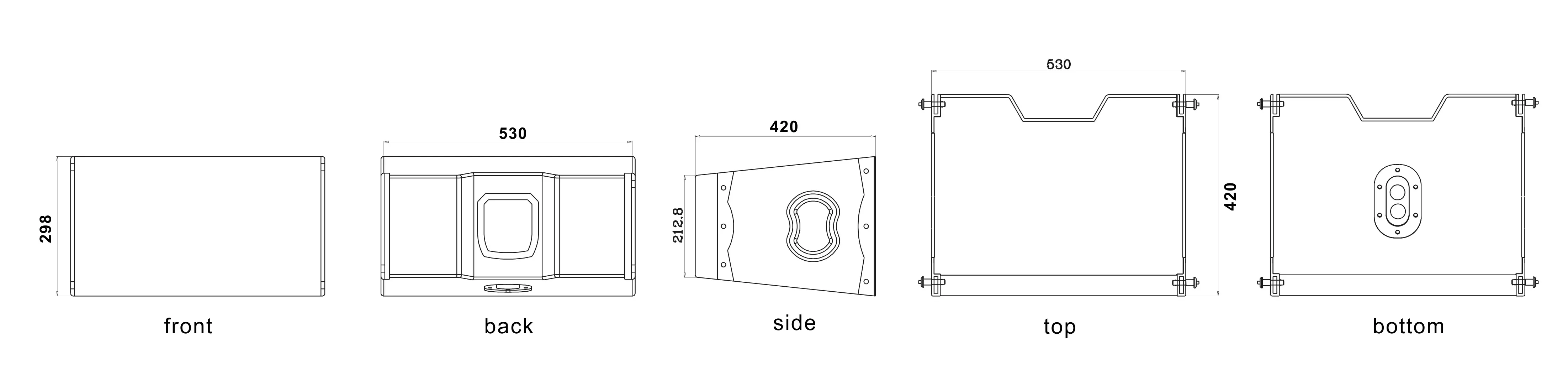

Constrction DraWing:
 |
