TA-15AII
Products
Latest News
Applications：
High-end fixed installation places such as large bars, party night venues, theaters, multi-function halls, auditoriums, etc.
Engineering Information：
MODEL: TA-15AII
|
Drivers |
HF:1×1.4"Voice-coil:3"/LF:1×15"Voice-coil:3" |
|
Frequency(-10dB) |
50-20000Hz |
|
Dispersion(-6dB) |
22.5°X20°（bottom）40°（top） |
|
Sensitivity(1m/1w) |
HF:108dB/LF:97dB |
|
Maximum SPL |
127 dB Continuous/133 dB Peak |
|
Nominal Impedance |
8 Ohms |
|
Rated Power |
HF:160W RMS/320W Peak LF:1000W RMS/2000W Peak |
|
Recommended AMP |
HF:200W 8 Ohms/ LF:1300W 8 Ohms |
|
Crossover Frequency |
1100Hz |
|
Material |
High-quality double-layer birch plywood box |
|
Mesh surface |
High strength pressed mesh, covered with black acoustic transparent guitar mesh. |
|
Finish |
Environmental protection water-based paint |
|
Connectors |
2x Speakon NL4MP |
|
Handing Position |
Dedicated hoisting system |
| Dimexnsions(H×W×D) |
820mm×(437,197)mm×655mm |
| Net Weight(Kg) |
39.7 |

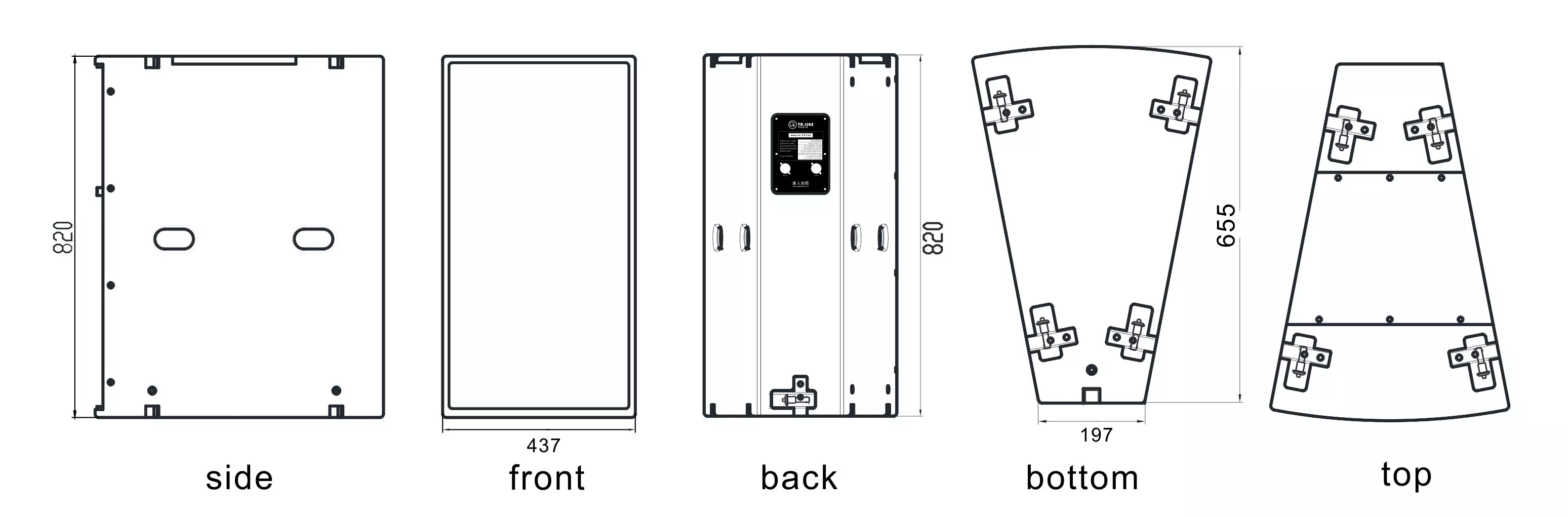

Constrction DraWing:
 |
