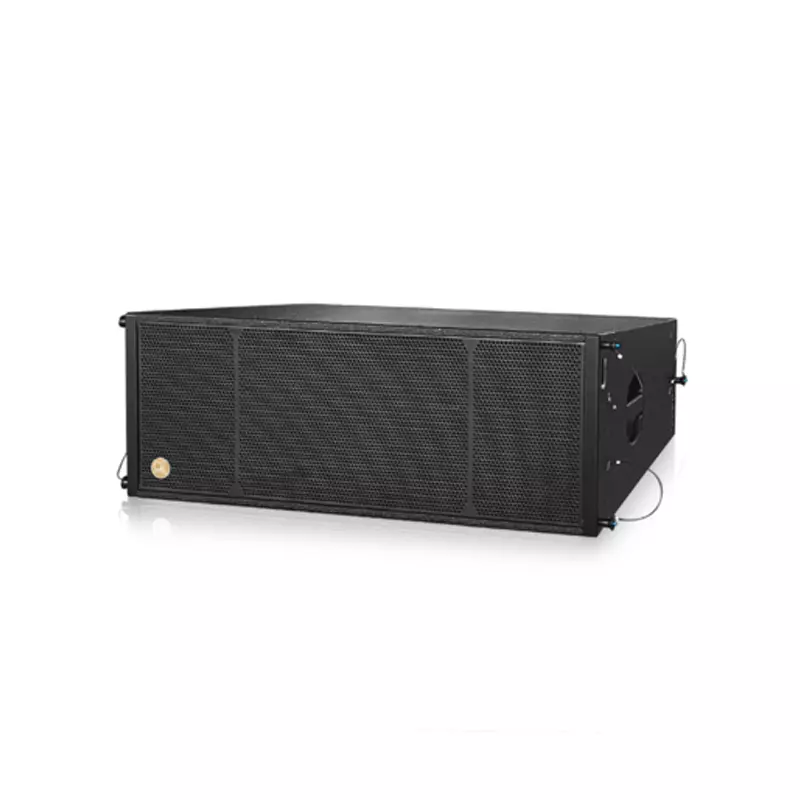

TQ-200NA
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Active Linear Array
Brand：TR.LIGE
Model：TQ-200NA
Products
Latest News
Product Details
Applications：
Applicable places: performances, performing arts bars, party bars, music restaurants, auditoriums.
Engineering Information：
MODEL:TQ-200NA
| Drivers |
HF:2×1.4"Voice-coil:3" MF:4×6.5"Voice-coil:1.46" LF:2×12"Voice-coil:3" |
| Frequency (-10dB) | 40-18000Hz |
| Dispersion(-6dB) | H 120° x V8° |
| Sensitivity（1m/1W) | HF:109dB MF:106.5dB LF:102.5dB |
| Maximum SPL | 134.5dB continuous /140.5dB Peak |
| Standard impedance | HF:8 Ohms MF:8 Ohms LF:2x8 Ohms |
| Rated Power |
HF:2X180W RMS/720W Peak MF:4X180W RMS /1440w Peak LF:2x800W RMS/3200W Peak |
| Crossover Frequency | 210Hz-1880Hz |
| Power amp | 300W/8 Ohms+800W/8 Ohms+1600W/4 Ohms |
| Amplifier type | Switched power amplifier, Class D circuit, with DSP/96K processing |
| Connectors | 2×Speakon XLR |
| Material | High-quality double-layer birch plywood box |
| Mesh surface | High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish | Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 367mm×970mm×639mm |
| Net Weight(Kg) | 60.6 |

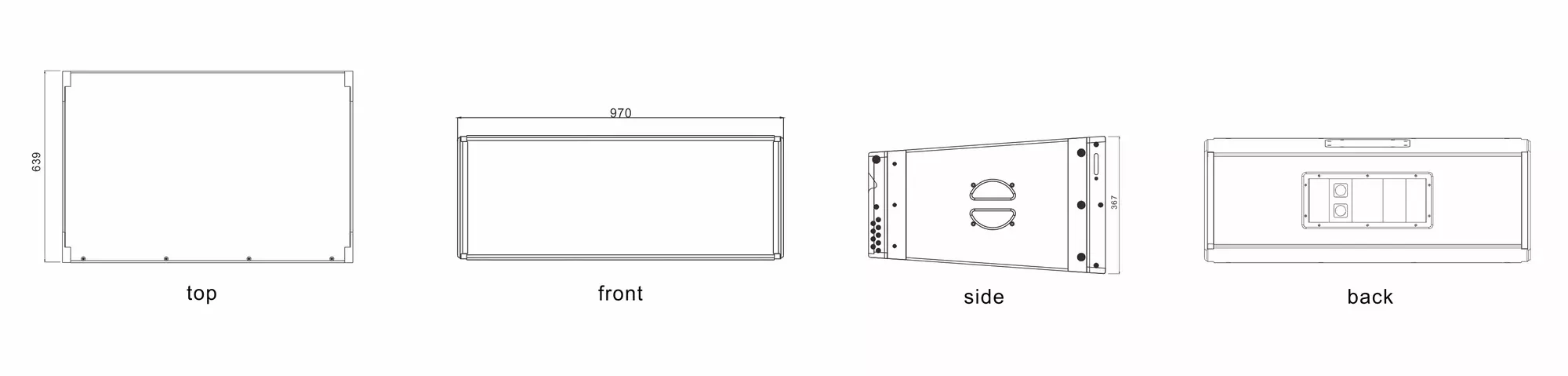

Constrction DraWing:
 |
