Applications：
Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.
Engineering Information：

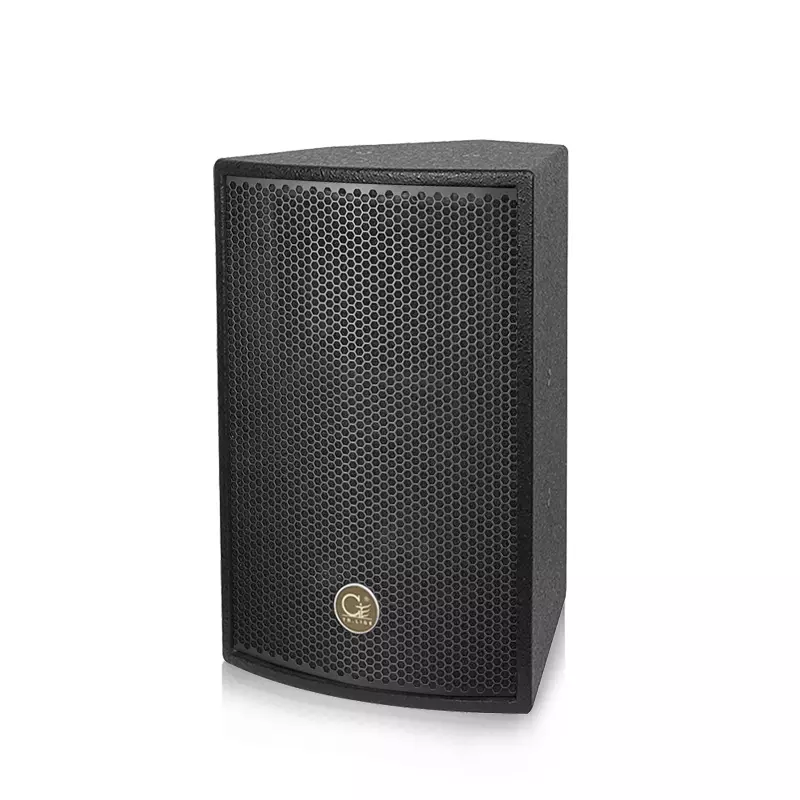

MODEL: TC-8
| Drivers | HF:1×1"Voice-coil:1.35"/ LF:1×8"Voice-coil:2" |
| Frequency(+/-3dB) | 70-18000Hz |
| Dispersion(-6dB) | 100°×45° |
| Sensitivity(1m/1w) | 96dB |
| Maximum SPL | 121.8dB Continuous/127.8dB Peak |
| Nominal Impedance | 8 Ohms |
| Rated Power | 380W RMS/760W Peak |
| Recommended AMP | 350W/8 Ohms |
| Crossover Frequency | 2800Hz (24dB/Octave slope) |
|
Material |
high-quality double-layer birch plywood box |
|
Mesh surface |
High strength pressed mesh surface, paste a special acoustic sponge mesh. |
| Finish |
Environmental protection water-based paint |
| Connectors | 2×Speakon NL4MP |
| Handing Position | 4 M8Lifting point |
| Dimexnsions(H×W×D) | 422mm×(280,105)mm×232mm |
| Net Weight(Kg) |
8.8 |

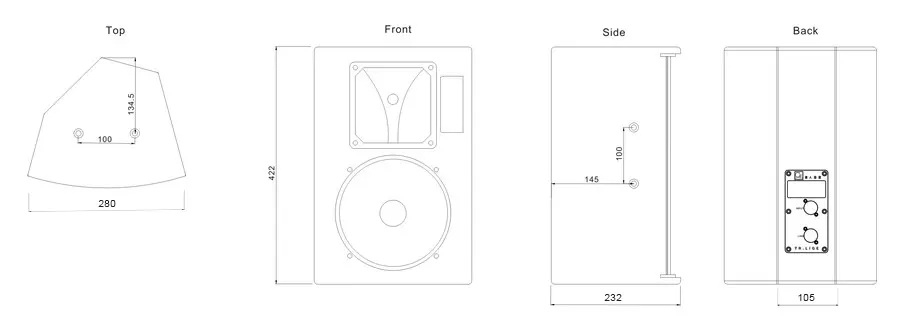

Constrction DraWing:
 |
