Product Details

Applications：

Top entertainment clubs, nightclubs, high-end mass-market KTVs, bars, auditoriums, banquet rooms, meeting rooms and other language and music sound reinforcement venues.

Engineering Information：

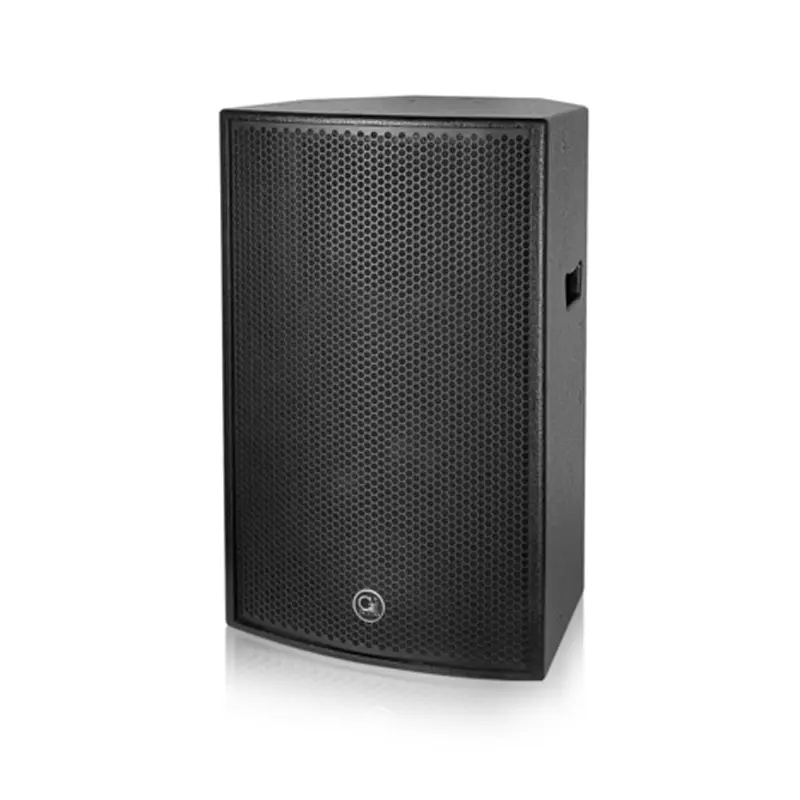

MODEL: TC-150A

Drivers:	HF:1x1.4 Voice-cail:3/LF:1×15"Voice-coil:3"
Frequency(-10dB):	55-18000Hz
Dispersion(-6dB):	90*×60°
Sensitivity(1m/1W):	98dB
Maximum SPL:	127dB Continuous/133dB Peak
Nominal Impedance:	HF:8 Ohms/LF:4 Ohms
Rated Power:	HF:160W RMS/320W Peak;LF:800W RMS/1600W Peak
Power amp:	250W/8 Ohms+800W/4 Ohms
Amplifier type:	Switched power amplifier,Class D circuit,with DSP/96K processing
Material:	High-quality double-layer birch plywood box
Mesh surface:	High strength pressed mesh surface,paste High strength pressed mesh surface,paste a special acoustic sponge mesh
Finish:	Environmental protection water-based paint
Connectors:	2x Speakon XLR
Handing Position:	19 M8Lifting point
Dimensions(H×Wx D):	672mm×(428,220)mm×434mm
Net Weight:	29.9kg

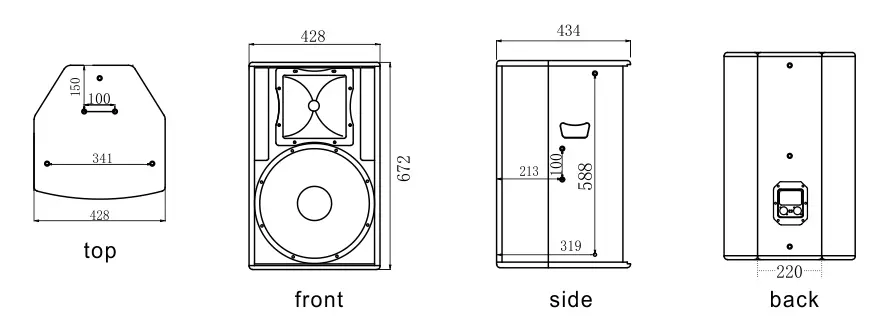

Constrction DraWing:
