TQ-2210
MOQ: 1 Pieces
Delivery time: 15 Day
Type：Linear array speaker
Brand：TR.LIGE
Model：TQ-2210
Products
Latest News
Product Details
Applications：
Applicable places: performances, performing arts bars, party bars, music restaurants, auditoriums.
Engineering Information：
MODEL:TQ-2210
| Drivers |
HF:1×1.4"Voice-coil:3" LF:2×10"Voice-coil:2.5" |
| Frequency (-10dB) |
68-18000Hz |
| Dispersion(-6dB) | horizontal:80°-100°/Splay angle setting:0°-12°(1°increment) |
| Sensitivity（1m/1W) |
HF:103dB/LF:98dB |
| Maximum SPL |
128dB continuous/134dB Peak |
| Nominal Impedance | HF:16 Ohms/LF:16 Ohms |
| Rated Power |
HF:140W RMS/280W Peak LF:1000W RMS /2000WPeak |
| Recommended AMP | HF:200W/8 Ohms LF:1300W/8 Ohms |
| Crossover Frequency | 1200Hz |
| Connectors | 2x Speakon NL4MP |
| Material |
High-quality double-layer birch plywood box |
| Mesh surface |
High-strength steel mesh with hexagonal holes and special sound-transmitting sponge mesh inside. |
| Finish |
Environmental protection water-based paint |
| Handing Position | Dedicated hoisting system |
| Dimensions(H×WxD) | 290mm×700mm×516mm |
| Net Weight(Kg) | 29.5 |

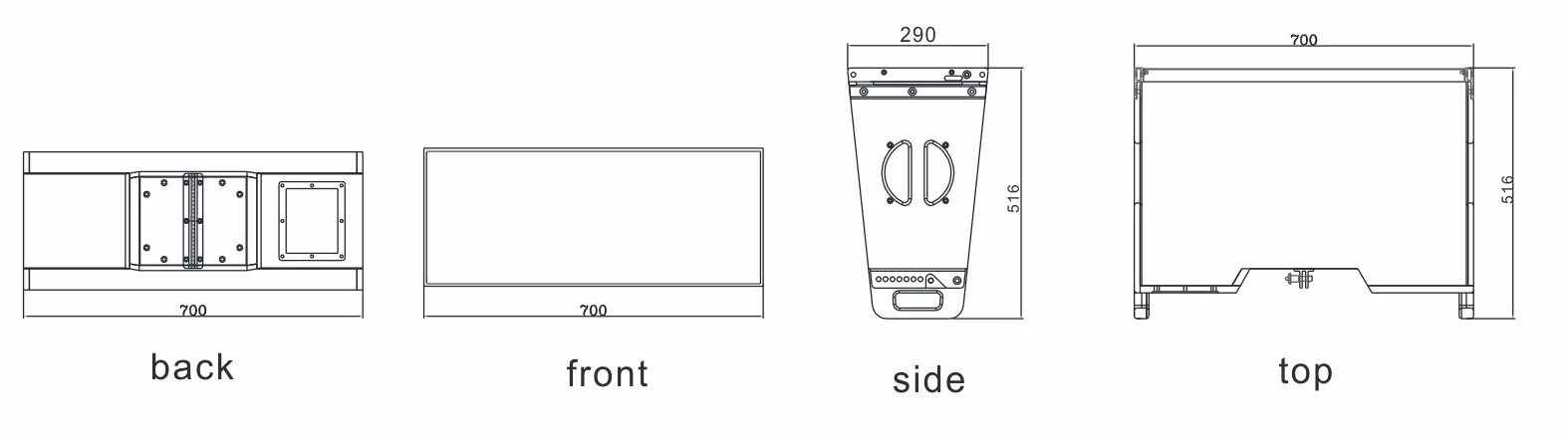

Constrction DraWing:
 |
