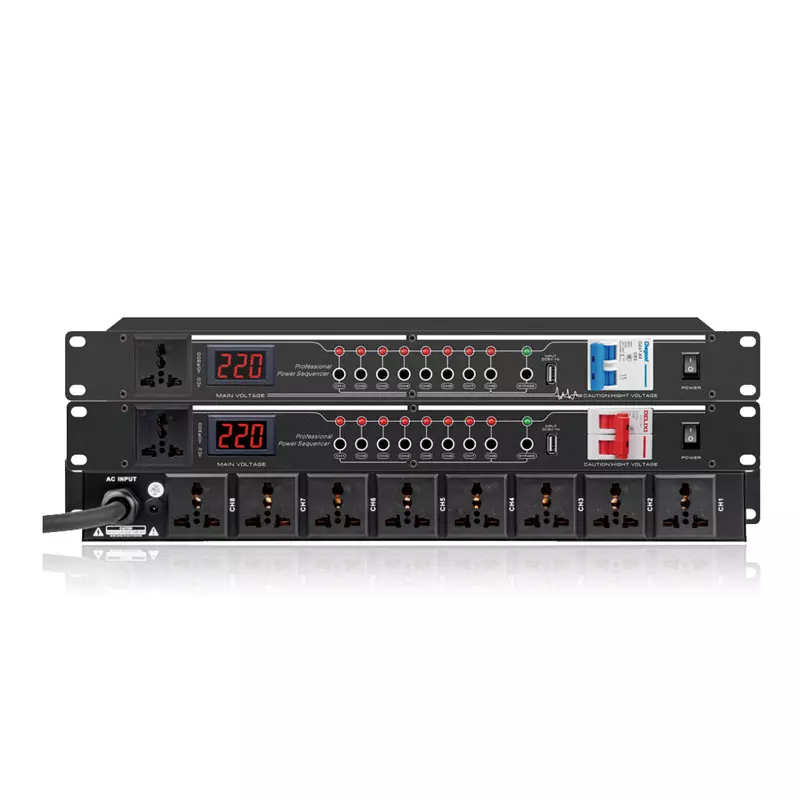

CX2-D (sequencer)

Engineering Information：

Model:CX2-D

1、Panel color: Iron black

2、Number of channels: 1-way direct access on the panel, 8-way universal socket on the back panel controlled by relay

3、Single-channel power/total power/output current: 2000W/6000W/63A 277VAC

4、Output power socket specifications: Flame-retardant ABS material, maximum current bearing 13A phosphor copper material, standard universal socket

5、Circuit board specifications: Double-sided fiberboard, main power wiring secondary thickening and thickening treatment

6、Power supply specifications: Built-in switching power supply, applicable to global voltage AC90-260V 50-60HZ

7、Main cable specification: 3*4 square cable, total length is 1.4 meters (with power output plug)

8、Opening type: boat switch

9、Short circuit overcurrent protection circuit breaker configuration: circuit breaker zero, live wire control, overcurrent protection, (63A short circuit protection)

10、Power purification function (EMI professional grid filter): none (optional separate filter)

11、Body size: length 480MM*width 175MM*height 5MM (standard 1U)

12、Functional features: accurate digital voltage display; sequential opening, reverse closing; free setting of channels; PASS key can open all channels at the same time; support panel to independently control each channel

13、Comes with USB 5V interface
