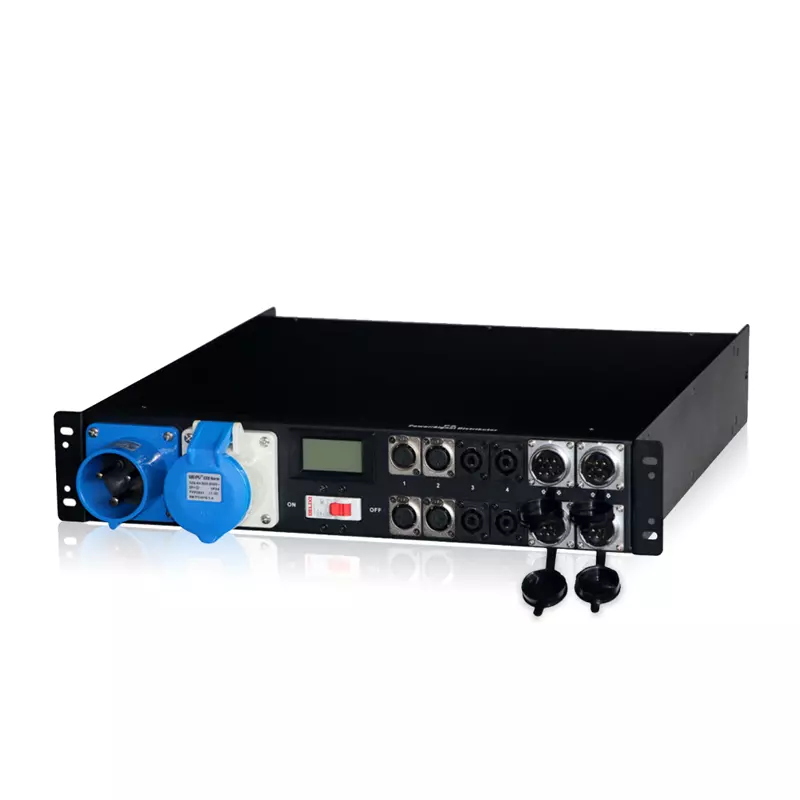

SPC-P8 （sequencer）

Engineering Information：

Model:SPC-P8

1、Type: System power supply, Signal distributor (for linear array speakers)

2、Maximum input current :32A

3、Working voltage: 220V/50-60Hz

4、Power per line: up to 3000W

5、Input and output voltage: AC input voltage =AC output voltage (please explain before placing an order, optional voltage: 110V input =110V output, 220V input =220V output)

6、Input/output power plug: 32A waterproof three-core plug (GB/European standard 3*6 square cable is recommended)

7、Distribution power socket: 16A universal socket, in line with European and American standards. 6 controlled universal sockets on the rear panel

8、Socket material: Each socket material phosphor copper, have passed the inspection before installation

9、Signal distribution type: Standard (can be customized according to requirements) Balanced XLR connection Input: 1-4/ output Front panel 5-12 port arrangement: Speakon seat arrangement (4-core and 8-core)

10、Circuit board line: 60% high purity tin, high-end shunt technology, strengthened rough processing

11、LCD meter: Voltage/current display

12、Chassis height: 3U (in accordance with cabinet standards)

13、Switch: Air switch through no time interval

14、Filter: 50A/EMI German imported filter (power purification)
