Applications:
High-end fixed installation places such as large bars, party night venues, theaters, multi-function halls, auditoriums, etc.
Engineering Information:

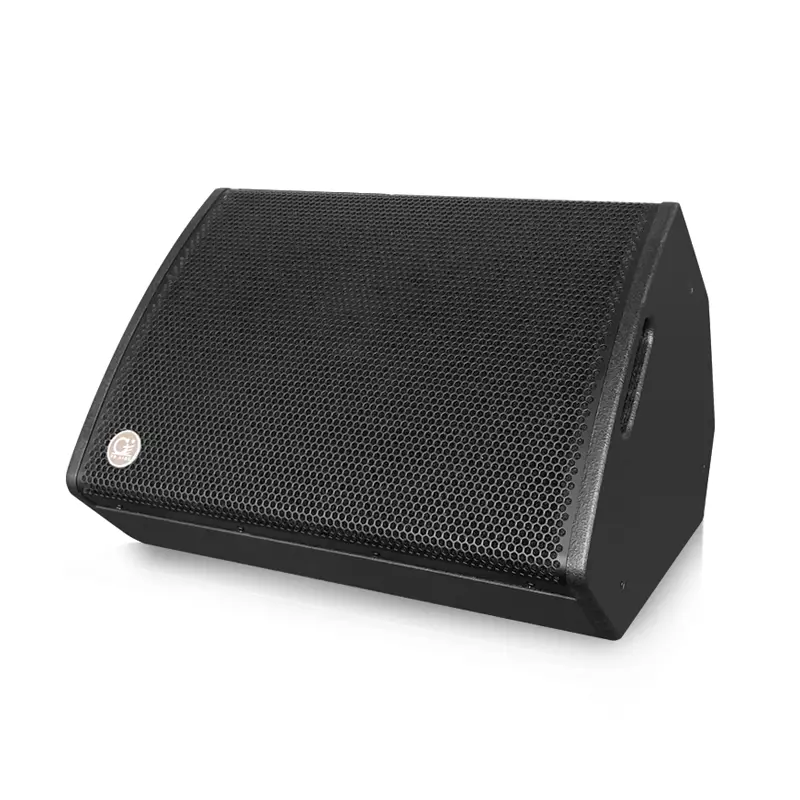

MODEL: MC-15
Drivers |
HF:1×1.4"Voice-coil:3"/LF:1×15"Voice-coil:3" |
Frequency(-10dB) |
45-18000Hz |
Dispersion(-6dB) |
80°×60° |
Sensitivity(1m/1w) |
102dB |
Maximum SPL |
131.8dB Continuous/137.8dB Peak |
Nominal Impedance |
8 Ohms |
Rated Power |
960W RMS/1920W Peak |
Crossover Frequency: | 1500Hz |
Material |
High-quality double-layer birch plywood box |
Mesh surface |
High strength hexagonal perforated steel mesh with special acoustic sponge mesh. |
Finish |
Environmental protection water-based paint |
Connectors |
2×Speakon NL4MP |
Handing Position |
12 M8Lifting point |
Dimexnsions(H×W×D) |
600mm x 425mm x 405mm |
Net Weight(Kg) | 26.9 |

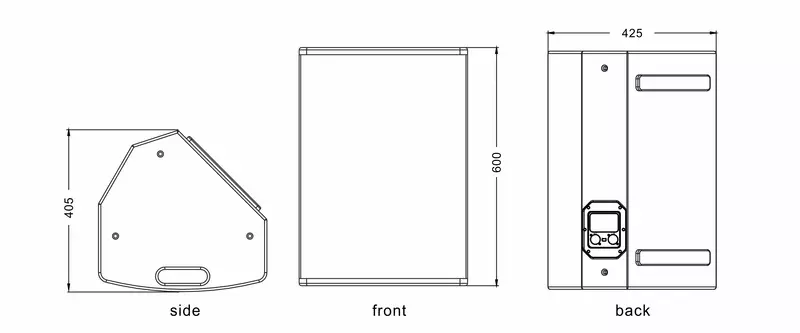

Constrction DraWing:
![]() |
