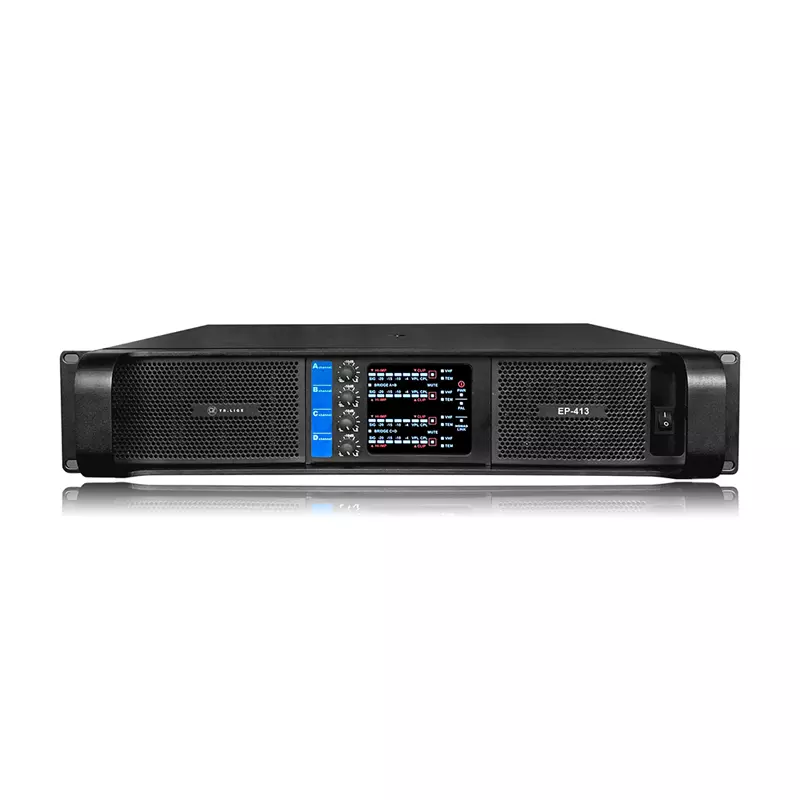

EP-413
Products
Latest News
Applications：
Suitable for places with high-level sound reinforcement requirements.
Engineering Information：
|
stereo power 8Ω |
1350W*4 |
|
Stereo power 4Ω |
2100W*4 |
|
Stereo power 2Ω |
2500W*4 |
|
Bridge power 8Ω |
4200W*2 |
|
Bridge power4Ω |
5000W*2 |
|
Frequency response (+0/-0.3dB, 1W/8Ω) |
20Hz-20KHz |
|
Input sensitivity |
23, 26, 29, 32, 35, 38, 41, 44dB |
|
Total harmonic distortion 20 Hz-20 kHz 1W |
<0.01% |
| Damping factor： | >400:1 |
|
Signal-to-noise ratio |
>102dB |
|
Channel separation (crosstalk) 1 kHz |
>70dB |
|
Input connector |
XLR female |
|
Output connector |
Speakon socket |
|
Input impedance |
20KΩ balanced |
|
Level adjustment |
front panel potentiometer, from negative infinity to 0dB |
|
Cooling method |
stepless speed regulation fan, air flow from front to back |
|
Amplifer proreurian method |
short circuit, open circuit, DC voltage, overheating, radio frequency, ultra-low frequency protection |
|
Power specification |
AC 220V (±10%) 50-60Hz |
|
Chassis size (H×W×D) |
88mm×483mm×405mm |
|
Packing size (H×W×D) |
150mm×590mm×540mm |
| Net weight | 12kg |
|
Gross weight |
15kg |
